- 650hp application
- Gamma-Ti turbine wheel
- Water cooled bearing housing
- Dual ceramic ball bearing assembly with metal cage
- Forged milled extended tip compressor wheel
- Compressor recirculation valve (a.k.a BOV)
- Stainless steel turbine housing
- Standard T3 or T4 mounting flange (depending on part number)
- Large internal wastegate
- Boost solenoid valve
The compressor housing is available standard with the CBV and solenoid mount, or "SXE" style casty by AGP with no features. The EFR compressor housing is 3.5" inlet, 2" outlet. The AGP compressor housing is 4" inlet, 2" outlet with no features to allow better fitment in smaller packages.

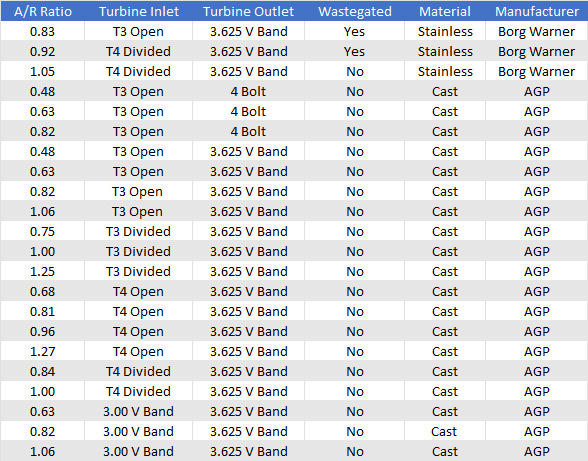

This turbo can be ordered as a super core configuration. As a super core, the turbo will not include turbine housing, assembly clamp hardware, and wastegate parts. We offer more turbine housing options than anyone else, and we engineer, cast, and machine our own AGP housings opening up endless possibilities for your project. If you are replacing an old worn out turbo from a kit made using old Garrett, Turbonetics, or Precision turbos, we have familiar housings that will allow a drop-in replacement. If you are developing a new kit, we offrer T3, divided, V band, etc. so you can choose any manifold you like.
Compressor Wheel Size 57/76mm
Turbine Wheel Size 70/62mm
We can weld a cast aluminum elbow off the end of the compressor discharge either towards inlet or towards turbine outlet.
The turbo comes with a -4 oil feed fitting in the bearing housing coming straight out the top. Some people may need to angle that so we have this -4 to -4 90 that helps route your feed line. The water ports are M14x1.5 and we carry fittings and banjo setups as well. The oil drain shares with the GT Ball Bearing, so that drain kit is available as well.
