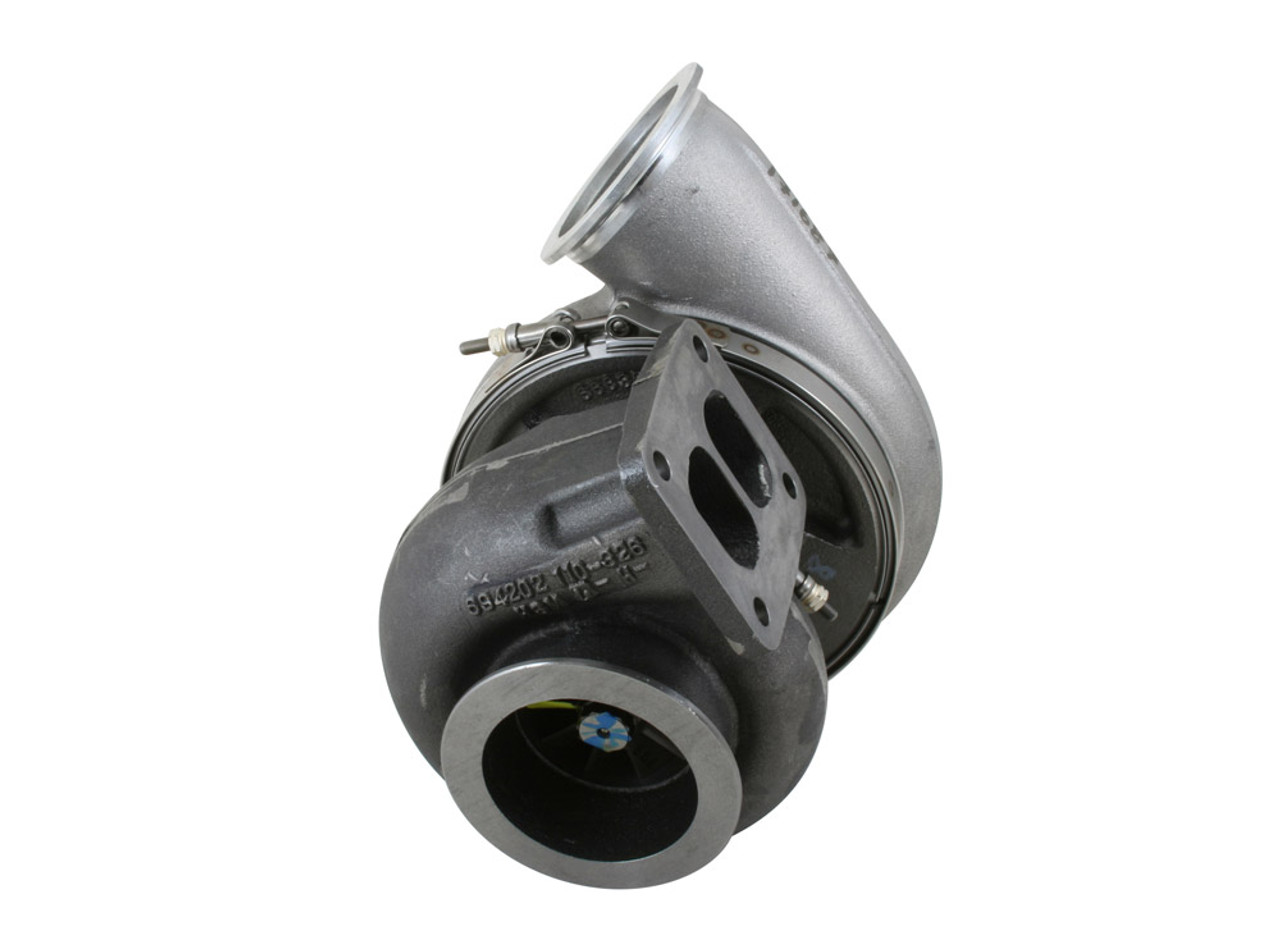

Borg Warner S471 T4 71/74 100/83 177248

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$1,026.07
SKU:
BW-177248
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description

aka 71/74 aka 71-74 S471/83/1.10

- Twin Hydrodynamic Journal Bearings

- Adjustable compressor and turbine housing orientation

- Compressor cover recirculation grooves

Compressor Specs:

- 71.08mm compressor wheel inducer, 100mm compressor wheel OD Extended Tip, 95lbs/min
- 5" Hose inlet 4.21 V Band Outlet Compressor Cover

Turbine Specs:

- 74.3mm turbine wheel exducer, 83mm OD
- T4 Twin Scroll Turbine Housing 4" Half Marmon Outlet also known as a 4.625 OD Flat Flange in .90, 1.00, 1.10, and 1.25 A/R. We can also machine the turbine outlet flange to an HX40.

Oil feed port is 1/4NPT and oil drain is standard S400 flange.  Oil fittings and flanges located here.  V Band Flanges and Clamps Located here.
