Borg Warner S480 T4 FMW Billet 80/82 110/87 179180

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Calculated at checkout

Product Description

179180 - AKA S480 - AKA 80/82 - AKA 110/87 - AKA 80-82 125lbs/min 1250 horsepower

Compressor Specs:

 - Borg Warner Race Cover 5.5" Inlet 3"Hose Outlet compressor housing with port shroud map width enhancement.

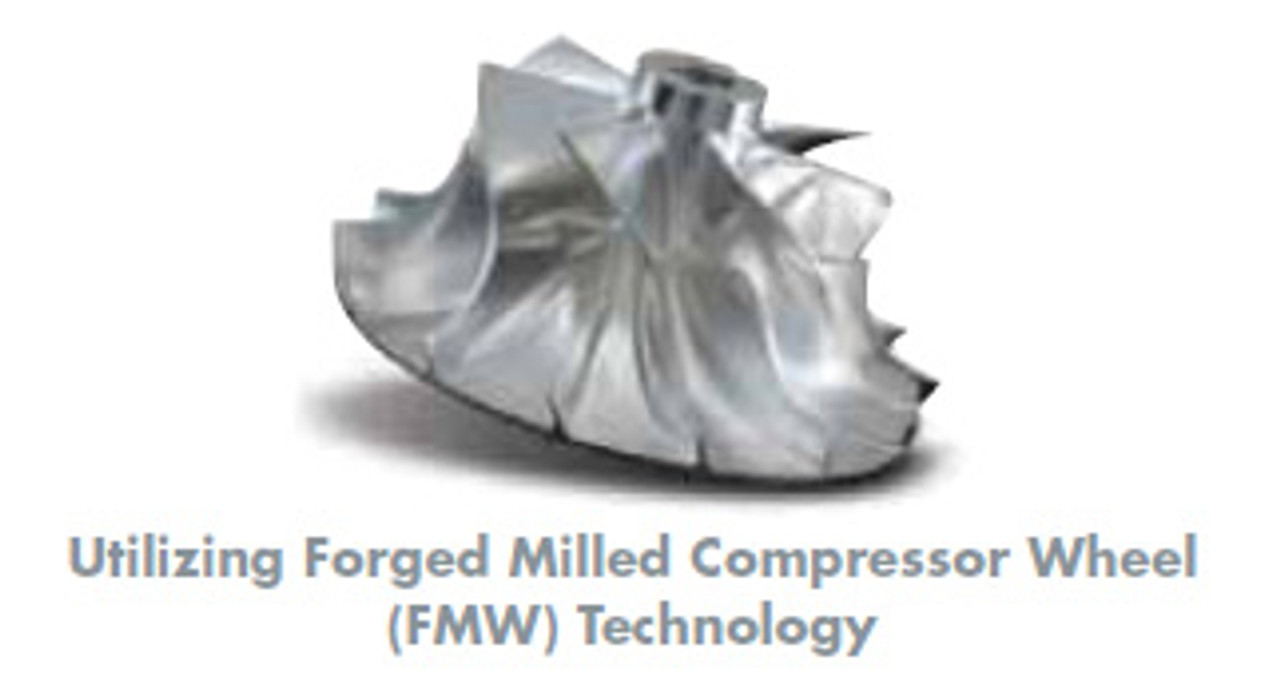

 - 80.3mm inducer 110mm exducer FMW Billet compressor wheel with Extended Tips

 Turbine Specs:

- 81.74mm turbine wheel exducer, 87.37mm OD
- T4 Twin Scroll Turbine Housing 4" Half Marmon Outlet also known as a 4.625 OD Flat Flange in .90, 1.00, 1.10, and 1.25 A/R.  We can also machine an HX40 feature into the turbine housing.

You can choose a different turbine housing as well:


Oil feed port is 1/4NPT and oil drain is standard S400 flange.  Oil fittings and flanges located here.  V Band Flanges and Clamps Located here.
